Stainless Steel Seamless Pipes Size Chart / Mild Steel Seamless Pipes Size Chart in Mmm & Inches

Stainless Steel Seamless Pipe Size Chart in MM and Inches, GI Pipe Size Chart in MM and Inches, MS seamless Pipe Size Chart in MM, Stainless Steel Seamless Pipe Size Chart pdf, Pipe Schedule and Thickness Chart, Pipe Schedule Chart Excel

Mild Steel Black Pipes Size Chart, Ms Pipe Size Chart, GI Pipe Size Chart, Ms Pipe Weight Chart pdf

Nominal Bore & Series		Outside Diameter (OD)		Wall Thickness (T)		Nominal mass of steel tube				Sockets
Nominal Bore & Series		Max	Min	Wall Thickness (T)		Plain End		Screwed & Socketed		Min OD	Min Length
mm	inch	mm	mm	mm	swg	kg/mtr	mrs/mt	kg/mtr	mtrs/mt	mm	mm
15L	0.50	21.4	21.0	2.0	14	0.947	1056	0.956	1046	27.0	37.0
15M	0.50	21.8	21.0	2.6	12	1.21	826	1.22	820	27.0	37.0
15H	0.50	21.8	21.0	3.2	10	1.44	694	1.45	690	27.0	37.0
20L	0.75	26.9	26.4	2.3	13	1.38	725	1.39	719	32.5	39.0
20M	0.75	27.3	26.5	2.6	12	1.56	641	1.57	637	32.5	39.0
20H	0.75	27.3	26.5	3.2	10	1.87	535	1.88	532	32.5	39.0
25L	1.00	33.8	33.2	2.6	12	1.98	505	2.00	500	39.5	46.0
25M	1.00	34.2	33.3	3.2	10	2.41	415	2.43	412	39.5	46.0
25H	1.00	34.2	33.3	4.0	8	2.93	341	2.95	339	39.5	46.0
32L	1.25	42.5	41.9	2.6	12	2.54	394	2.57	389	49.0	51.0
32M	1.25	42.9	42.0	3.2	10	3.10	323	3.13	319	49.0	51.0
32H	1.25	42.5	41.9	4.0	8	3.79	264	3.82	262	49.0	51.0
40L	1.50	48.4	47.8	2.9	11	3.23	310	3.27	306	56.0	51.0
40M	1.50	48.8	47.9	3.2	10	3.56	281	3.60	278	56.0	51.0
40H	1.50	48.8	47.9	4.0	8	4.37	229	4.41	227	56.0	51.0
50L	2.00	60.2	59.6	2.9	11	4.08	245	4.15	241	68.0	60.0
50M	2.00	60.8	59.7	3.6	9	5.03	199	5.10	196	68.0	60.0
50H	2.00	60.8	59.7	4.5	7	6.19	162	6.26	160	68.0	60.0
65L	2.50	76.0	75.2	3.2	10	5.71	175	5.83	172	84.0	69.0
65M	2.50	76.6	75.3	3.6	9	6.42	156	6.54	153	84.0	69.0
65H	2.50	76.6	75.3	4.5	7	7.93	126	8.05	124	84.0	69.0
80L	3.00	88.7	87.9	3.2	10	6.72	149	6.89	145	98.0	75.0
80M	3.00	89.5	88.0	4.0	8	8.36	120	8.53	117	98.0	75.0
80H	3.00	89.5	88.0	4.8	6	9.90	101	10.10	99	98.0	75.0
100L	4.00	113.9	113.0	3.6	9	9.75	103	10.00	100	124.0	87.0
100M	4.00	115.0	113.1	4.5	7	12.20	82	12.50	80	124.0	87.0
100H	4.00	115.0	113.1	5.4	5	14.50	69	14.80	68	124.0	87.0
125M	5.00	140.8	138.5	4.8	6	15.90	63	16.40	61	151.0	96.0
125H	5.00	140.8	138.5	5.4	5	17.90	56	18.40	54	151.0	96.0
150M	6.00	166.5	163.9	4.8	6	18.90	53	19.5	51	178.0	96.0
150H	6.00	166.5	163.9	5.4	5	21.30	47	21.90	46	178.0	96.0

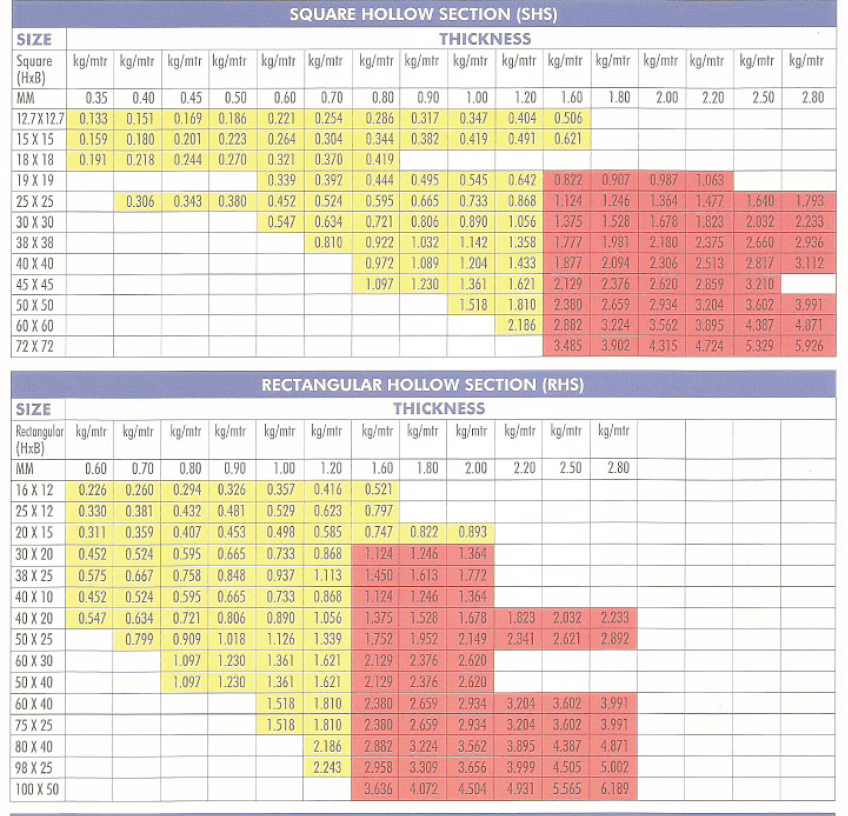

Square Pipes Size Chart, Rectangular Pipes Size Chart, Rectangular Pipes Weight Chart,

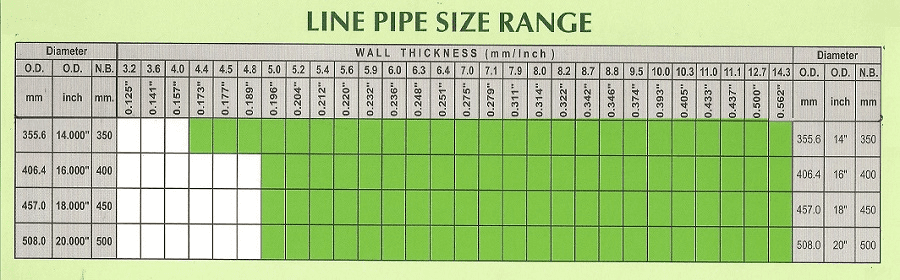

Line Pipe Size Ranges, Line Pipe Size Chart Ranges
